3D Printing

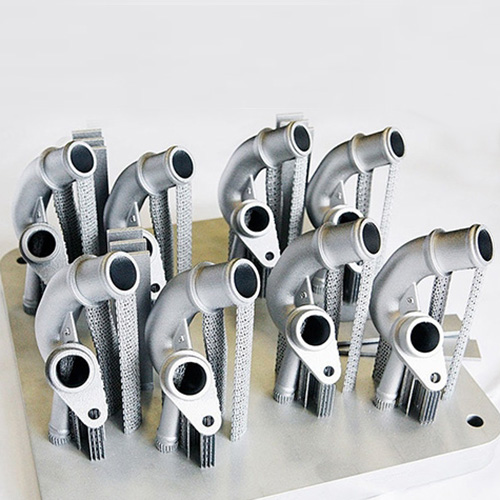

3D printing offers a wide range of materials. For Fused Deposition Modeling (FDM) printers, common materials include PLA (Polylactic Acid), which is environmentally friendly and easy to print with, and ABS (Acrylonitrile Butadiene Styrene), known for its durability and heat resistance. For Stereolithography (SLA) or Digital Light Processing (DLP) printers, photopolymer resins are used. These resins come in different types, such as standard resins for general use, tough resins for creating strong parts, and even dental resins for medical applications. Additionally, there are also metal powders used in Selective Laser Melting (SLM) or Electron Beam Melting (EBM) processes for industrial 3D printing, allowing the creation of metal parts with high precision and strength.

The precision of 3D printing depends on the type of printer and the technology used. FDM printers typically have a layer resolution ranging from 0.1 mm to 0.3 mm. This means that the thickness of each layer of material that is deposited can be as thin as 0.1 mm, resulting in relatively smooth surfaces for larger objects. However, for more detailed and intricate designs, SLA or DLP printers can achieve much higher resolutions, often down to 0.05 mm or even finer. These printers use light to cure liquid resin layer by layer, allowing for the creation of highly detailed and accurate parts. Industrial 3D printers, especially those used in precision engineering or medical applications, can achieve even higher levels of precision, with tolerances within a few micrometers. It’s important to note that while the technology can achieve high precision, factors such as printer calibration, material properties, and post-processing techniques can also affect the final accuracy of the printed object.

The cost of 3D printing a part can vary significantly depending on several factors. The type of material used is a major factor. For example, a spool of PLA filament for FDM printing can cost around $20 to $50, while a bottle of high-quality SLA resin might be priced between $50 to $100 or more. The amount of material required for the part also affects the cost. A small, simple part might only use a small fraction of a spool of filament or a small amount of resin, while a large or complex part could require more material. The type of printer used also plays a role. FDM printers are generally more affordable and have lower operating costs compared to SLA or DLP printers. Industrial 3D printers, which can produce parts with high precision and using advanced materials, can be very expensive to purchase and maintain. Additionally, there may be costs associated with post-processing, such as sanding, painting, or heat treatment, especially for parts that require a high-quality finish or specific mechanical properties. For custom or complex designs, there might also be design and setup costs involved.

The time it takes to 3D print a part depends on various factors. The size of the part is a key factor. A small part, such as a simple keychain, might take only a few minutes to an hour to print using an FDM printer. However, a larger part, like a prototype of a car part, could take several hours or even days, depending on its complexity and the layer resolution settings. The layer height also affects the printing time. A lower layer height, which results in a smoother surface finish, will increase the printing time because more layers need to be printed. The type of printer and technology used also plays a role. FDM printers generally print relatively slowly compared to SLA or DLP printers. SLA and DLP printers, which use light to cure liquid resin, can print layers more quickly, especially when using techniques like continuous printing. The design of the part also matters. Parts with complex geometries or intricate details may require more time to print accurately.
